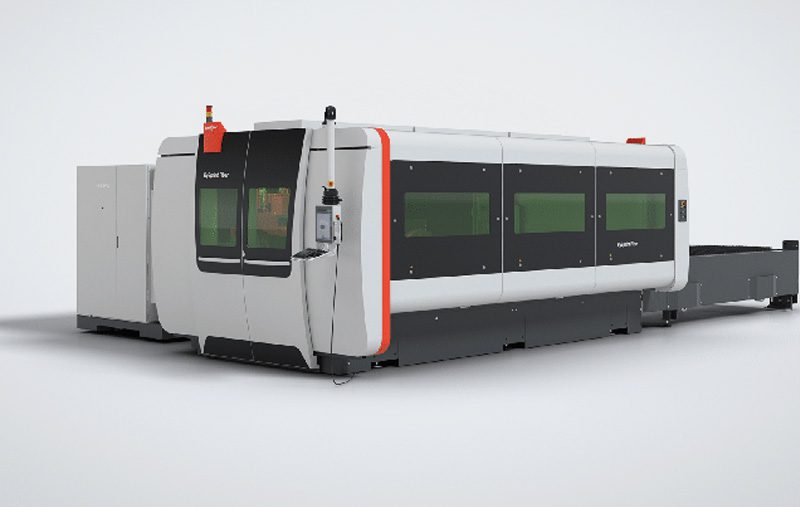

CAPACITY
| MAKE | COUNTRY | CAPACITY | TECHNOLOGY | BED SIZE |
|---|---|---|---|---|
| BYSTRONIC | SWITZERLAND | 3KW | FIBRE | 3000*1500mm |
CUTTING CAPABILITIES
| MATERIAL | THICKNESS |
|---|---|
| MILD STEEL | 0.5-20mm |
| STAINLESS STEEL | 0.5-12mm |
| ALUMINIUM | 0.5-12mm |
| COPPER | 0.5-6.0mm |
| BRASS | 0.5-6.0mm |
| TITANIUM | 0.5-3.0mm |

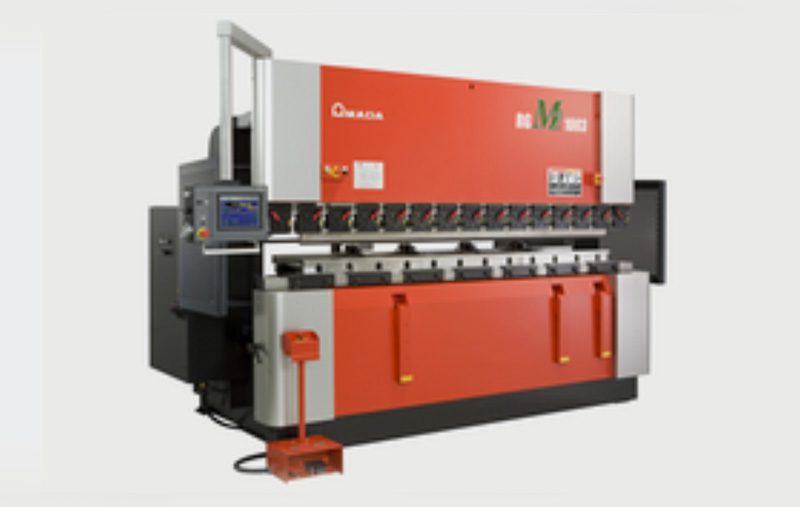

AMADA
CAPACITY
| MAKE | COUNTRY | CAPACITY | TECHNOLOGY | BED SIZE |
|---|---|---|---|---|
| AMADA | JAPAN | 35 TON | NC OPERATED | 1200 MM |
BENDING CAPABILITIES
| MATERIAL | THICKNESS | PART LENGTH (bend up to) |
|---|---|---|
| MILD STEEL | 0.5-3.0 mm | 1200 mm |
| STAINLESS STEEL | 0.5-2.0 mm | 1200 mm |
| ALUMINIUM | 0.5-3.0 mm | 1200 mm |
| COPPER | 0.5-3.0 mm | 1200 mm |
| BRASS | 0.5-3.0 mm | 1200 mm |

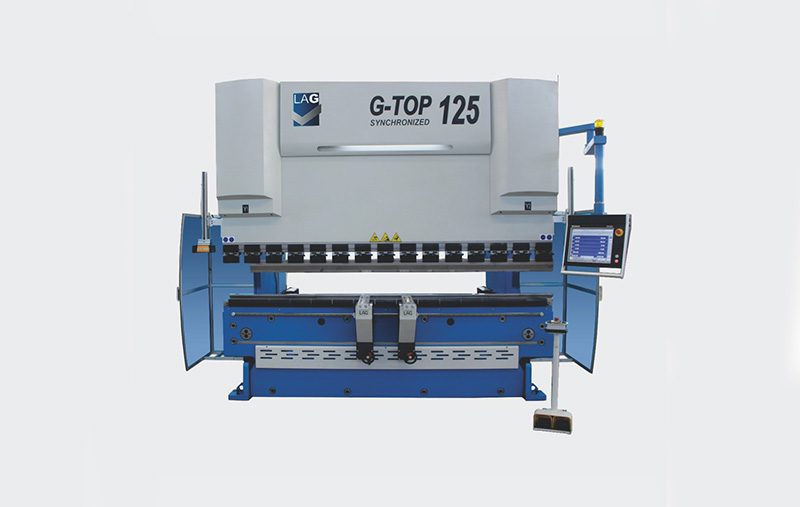

LAG
CAPACITY
| MAKE | COUNTRY | CAPACITY | TECHNOLOGY | BED SIZE |
|---|---|---|---|---|
| LAG | ITALY | 125 TON | CNC AUTOMATIC | 3000 MM |
BENDING CAPABILITIES
| MATERIAL | THICKNESS | PART LENGTH (bend up to) |
|---|---|---|
| MILD STEEL | 0.5-5.0 mm | 3000 mm |
| MILD STEEL | 6.0 mm | 1000 mm |
| STAINLESS STEEL | 0.5-3.0 mm | 3000 mm |
| STAINLESS STEEL | 4.0 mm | 1000 mm |
| ALUMINIUM | 0.5-5.0 mm | 3000 mm |
| ALUMINIUM | 6.0 mm | 1000 mm |
| COPPER | 0.5-3.0 mm | 3000 mm |
| COPPER | 6.0 mm | 1000 mm |
| BRASS | 0.5-3.0 mm | 3000 mm |
| BRASS | 6.0 mm | 1000 mm |

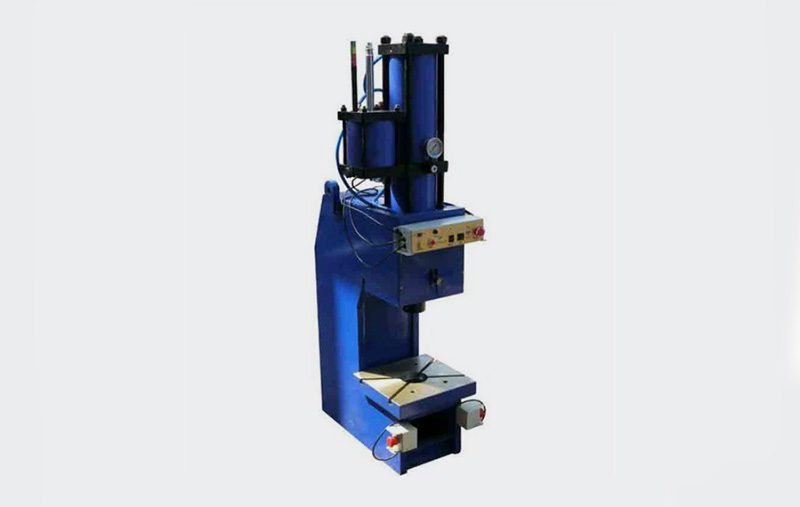

CAPACITY
| MAKE | COUNTRY | CAPACITY | TECHNOLOGY |
|---|---|---|---|
| BRITT PNEUMATIC SYSTEM | INDIA | 2 TON | SEMI-AUTOMATIC |
CAPABILITIES
- Pressing
- Punching
- Riveting
- Bending by Manual tool
CAPACITY
| MAKE | COUNTRY | CAPACITY | TECHNOLOGY |
|---|---|---|---|
| BRITT PNEUMATIC SYSTEM | INDIA | 8 TON | SEMI-AUTOMATIC |
CAPABILITIES
- Pressing
- Punching
- Riveting
- Bending by Manual tool

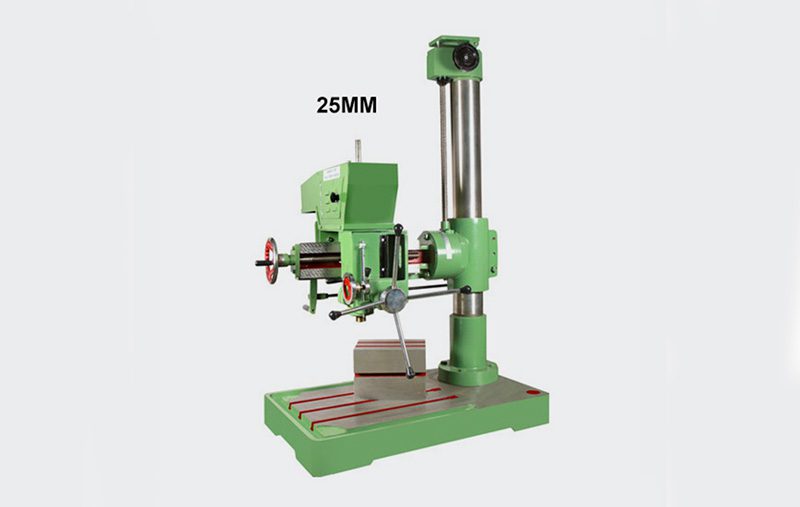

CAPACITY
| MAKE | COUNTRY | CAPACITY | TECHNOLOGY |
|---|---|---|---|
| MATCHLESS | INDIAN | 25 mm | PILLAR DRILL |
| MATCHLESS | INDIAN | 19 mm | RADIAL DRILL |
| KPT | INDIAN | 31 mm | MAGNETIC DRILL |
CAPACITY
| MAKE | COUNTRY | CAPACITY | TECHNOLOGY |
|---|---|---|---|
| TAIPU | CHINA | 1.2 KW | SEMI AUTOMATIC |

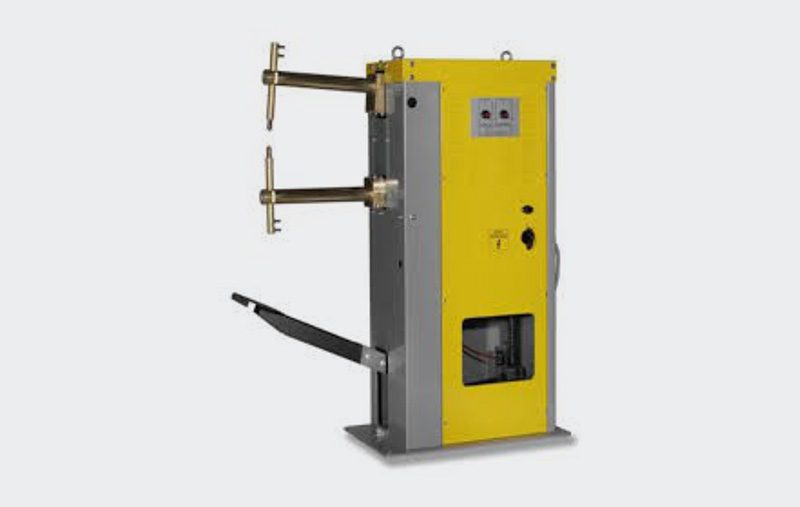

CAPACITY
| MAKE | COUNTRY | CAPACITY | TECHNOLOGY |
|---|---|---|---|
| DELHI ELECTRICALS | INDIAN | 20 KWA | THYRISTOR BASED |
CAPABILITIES
- Welds up to seven spots at a time
- Can weld up to 6 mm

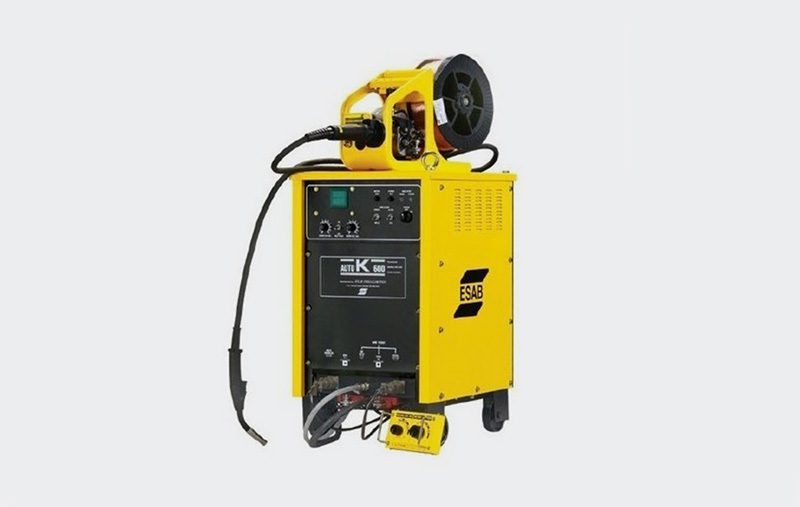

CAPACITY
| MAKE | COUNTRY | CAPACITY | TECHNOLOGY |
|---|---|---|---|
| ESAB | INDIA | 250 AMP | TRANSFORMER BASED |
CAPABILITIES
- Can weld mild steel, aluminium, stainless steel
- Digital VA meter
- 10 step single knob voltage control
- Heavy-duty built-in feed system
- Stepless speed control
- Wire feed speeds up to 22 m/min
- Quick changeover wire feed mechanism
- Suitable for 0.8 – 1.2 mm wire
- Spot, Stitch and continuous welding modes
- 2 / 4 stroke welding
- Wire feeder with 5m interconnection standard

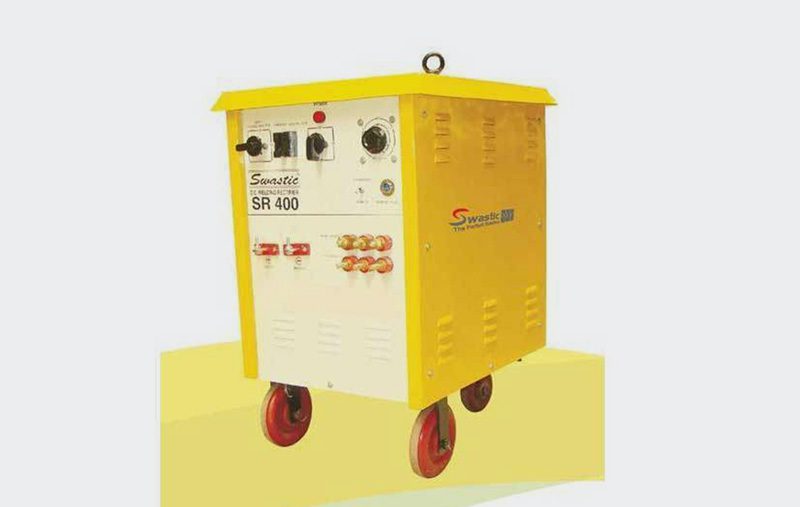

CAPACITY
| MAKE | COUNTRY | CAPACITY | TECHNOLOGY |
|---|---|---|---|
| WESCO | CHINA | 400 AMP | INVERTER BASED |
| SWASTIK | INDIA | 400 AMP | TRANSFORMER BASED |
CAPABILITIES
- Can weld mild steel, stainless steel, alumunium, copper,brass
- Used without filler material
- Leaves no slag or spatter
- Welding yields low distortion
CAPACITY
| MAKE | COUNTRY | CAPACITY | TECHNOLOGY | ARM SIZE |
|---|---|---|---|---|
| OTC | JAPAN | 350 AMP | MICRO-BASED | MICRO BASED |
CAPABILITIES
- Can weld mild steel and stainless steel
- High Quality Welding in low current range.
- Spatter Free with Digital Electronic Reactor
- Stable Welding Quality by penetration Adjustment Function
- Perfect Arc Starts for reliable welding operations.
- Torch is in optimal orientation

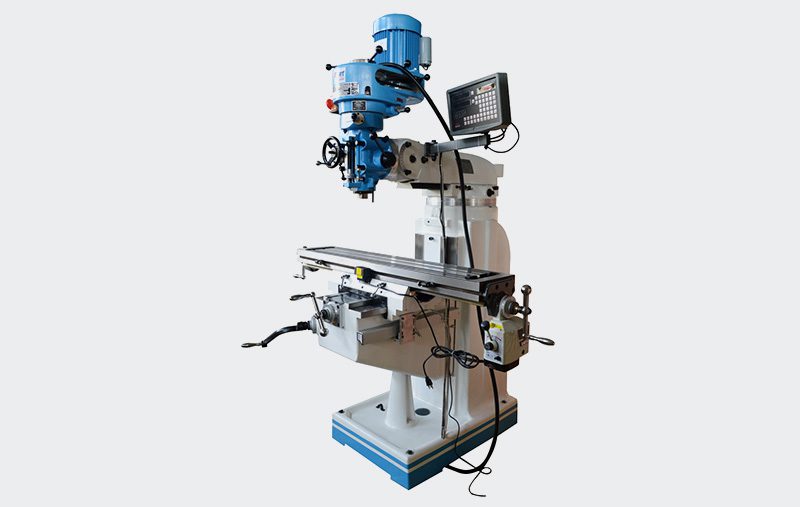

CAPACITY
| MAKE | COUNTRY | CAPACITY | TECHNOLOGY | BED SIZE |
|---|---|---|---|---|
| MICROCUT | TAIWAN | 700*300 mm | DRO | 600*700 mm |
CAPABILITIES
- BORING
- SIDE FACING
- COUNTER
- DRILLING & SLOTTING

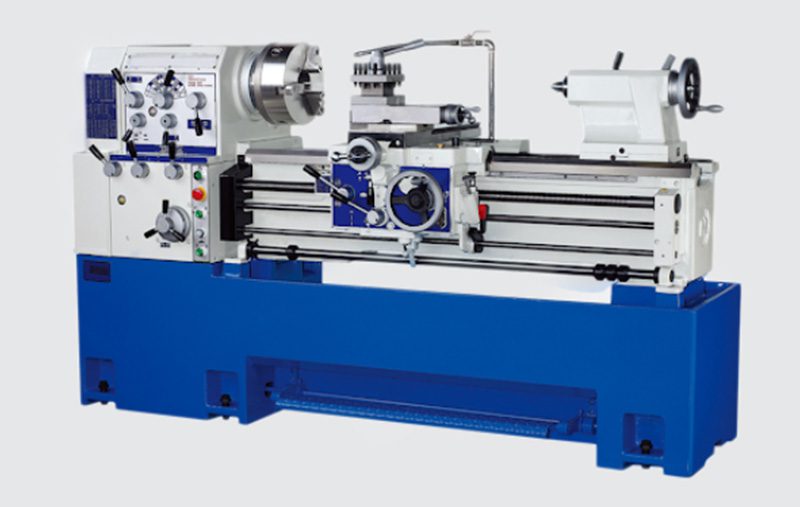

CAPACITY
| MAKE | COUNTRY | CAPACITY | TECHNOLOGY | BED SIZE |
|---|---|---|---|---|
| EMTEX MACHINERY | INDIA | 750 mm turning 1-32 mm drilling 200 mm facing | ORNAMENTAL BASED | 360*1000 mm |
CAPABILITIES
- TURNING
- FACING
- BORING
- DRILLING
- THREADING

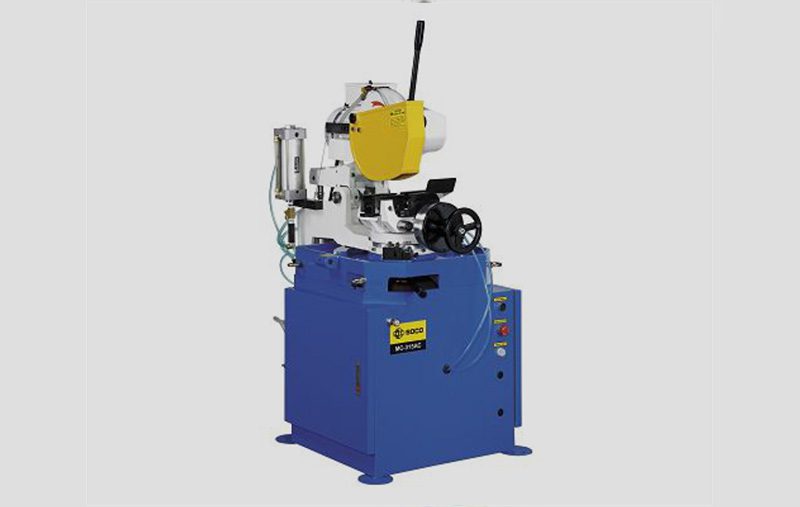

CAPACITY
| MAKE | COUNTRY | CAPACITY | TECHNOLOGY |
|---|---|---|---|
| SOCO | TAIWAN | 25-350 MM DIAMETER | SEMI AUTOMATIC |
CAPABILITIES
- Cutting Range – up to 80 mm
- Thickness – 5 mm
- Angle cutting ≤ 90 degree
- Vibration free cutting
- Automatic lubrication system

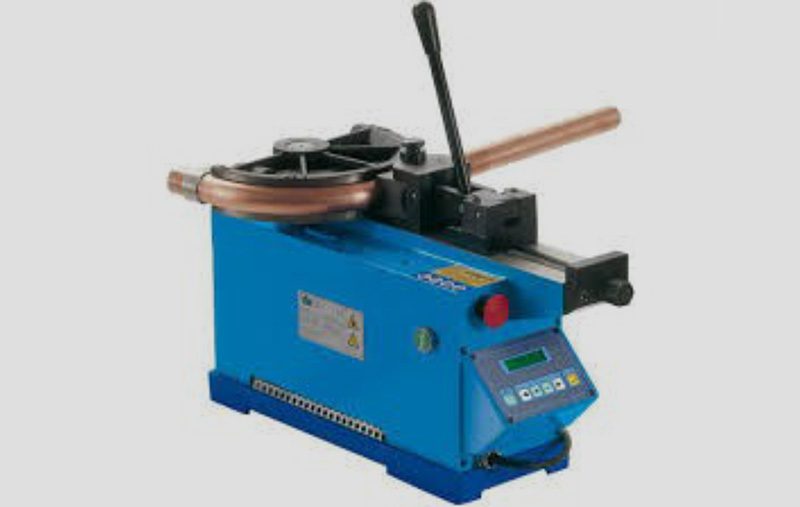

CAPACITY
| MAKE | COUNTRY | CAPACITY | TECHNOLOGY |
|---|---|---|---|
| AV ENGINEERS | INDIA | 20-28 mm diameter | MANUAL |
CAPABILITIES
- Thickness – 3 mm
- Angle bending ≤ 90 degree
